- 21 Standard Colors, 5 Metallic Colors and 4 Specialized Colors
- Vintage® has a color range that can vary from batch-to-batch and have directional variations
- For more information: click here
- Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- For more information: click here
- Kynar 500® Paint System – the ultimate in exterior durability and color retention
- “Cool” color pigments are specially designed to reflect infrared light, reducing heat gain to dwelling, and conform with ENERGY STAR® criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty: Contact TMP for warranty specifications
Quick Download
Versa-Span™ (Available through Taylor Metal Products)
Versa-Span™ system is a strong, durable, versatile, long length roof panel. It combines the strength of steel fluted pans and a lock-action rib design. Which together with concealed fasteners, enables installation on low pitched roofs.
Features & Benefits
- 12″, 14″, 16″ & 18″ coverage options available
- 24 and 22 gauge Tru-Gauge™ and .032″ and .040″ Aluminum
- Floating clip system: allows for expansion & contraction of panels in longer lengths
- 1-3/4″ vertical rib, factory notching available
- 2:12 minimum pitch recommended (for lower pitches, please inquire)
- Standard panel lengths 5′ to 60′ – not notched
Standard panel lengths 1′ to 60′ – notched
(for longer length panels, please inquire) - Onsite roll forming available for longer panels
- Factory injected Butyl sealant available
- Clip Relief is not standard, available upon request

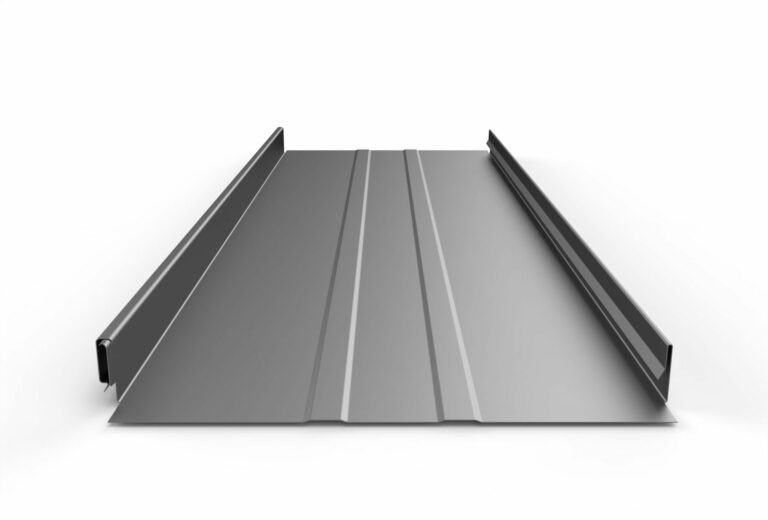

- Pan options: Striations, Accent Ribs, Flat pan
- Wide Batten incorporates nicely over Versa-Span™ standing seam panel (separate clip required)
- Weather tightness warranty available (Contact Taylor Metal representative for details)
- Manufactured in Salem, OR
Material Specifications
- 24 Tru-Gauge™ Kynar 500® Painted Steel
- 22 Tru-Gauge™ Kynar 500® Painted Steel
- .032″ Kynar 500® Painted Aluminum
- 24 Tru-Gauge™ G-90 Galvanized or AZ-50
- 24 and 22 Tru-Gauge™ bare Zincalume® Plus, AZ-55 (no finish warranty – 25 year perforation warranty)
- G-90 Galvanized or AZ-50
- .040″ Kynar 500® Painted Aluminum (please inquire)
- 24 Tru-Gauge™ Bonderized
- 22 gauge Rusteel Plus™ (A606) – Rusteel Plus™ has no metallic coating, is unpainted and has no warranty
- Custom 20 & 18 Tru-Gauge™ and .050″ and .063″ Aluminum (please inquire)
- 16 and 20 ounce Real Copper
Testing
- UL Construction No. 254, 255, 261, 303, 342, 343, 414, 436, 445, 447, 448, 486, 508, 508A, 543, 544
- UL 580 Class 90 Wind Uplift
- UL 790 Class A (ASMT E108) – Fire rated
- UL 2218 Class 4 – Impact (hail) rated
- ASTM E1680 – Air infiltration (roof)
- ASTM E1646 – Water infiltration (roof)
- ASTM E1592 – Structural uniform static air pressure
- ASTM E1514 – Standard for Structural Standing steel roof panels systems
- ASTM E331 – Water infiltration (wall)
- ASTM E283 – Air infiltration (wall)
- ASTM A653/A924 – G90 Galvanized
- ASTM A792 – Zincalume/Galvalume AZ-50/55
- ASTM B209 – Aluminum Substrate
